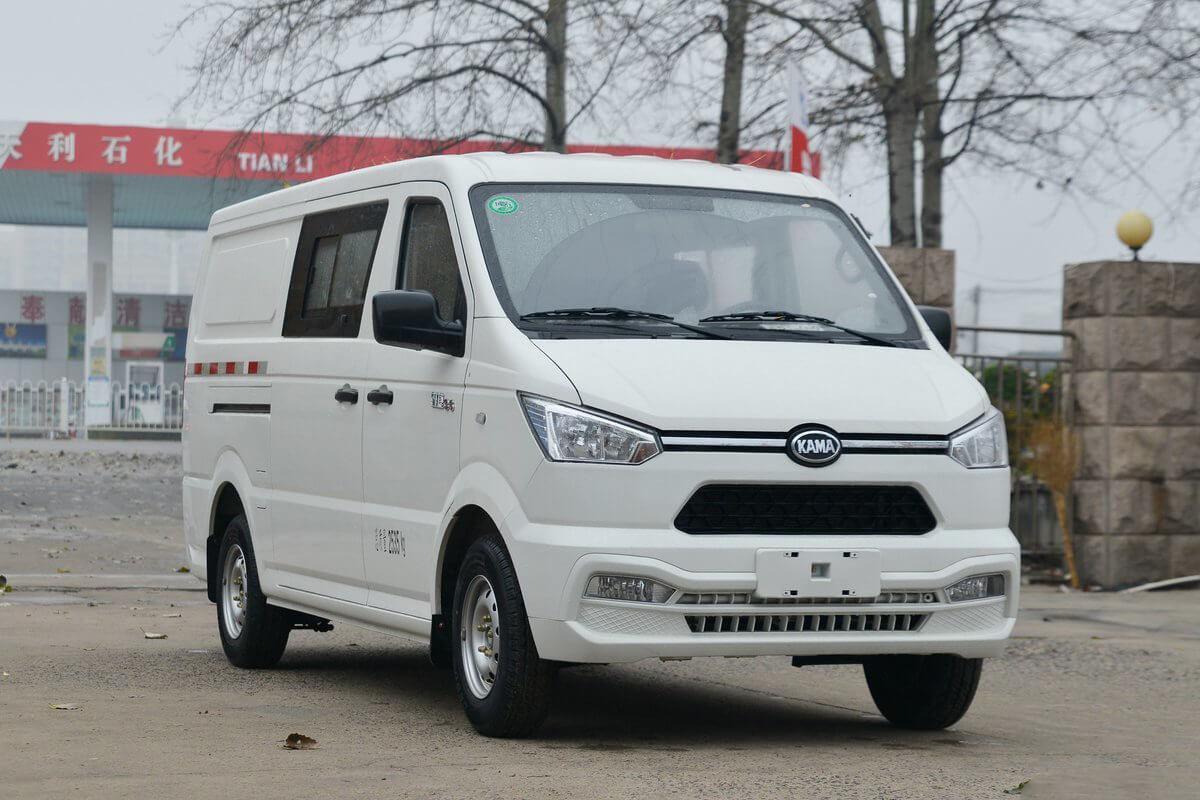

S SERIES MINI VAN

Fuel typeGASOLINE TYPE
ModelS6
Suggested payload1.5T
CabinSingle cabin for van
Wheel Base(mm)3050
Overall dimensions(mm)4865*1715*1995
Cargo Box Size(mm)2670*1550*1350(5.6m3)
Curb Weight (Kg)1465

Share

Products Description

Specification

S SERIES MINI VAN
Fuel typeGASOLINE TYPEGASOLINE TYPEGASOLINE TYPEGASOLINE TYPEGASOLINE TYPE
ModelS6S6SS7SP6SP7
EmissionEuro-IIEuro-VEuro-VIEuro-IEuro-V
Suggested payload1.5T1.5T1.5T1T1.2T
CabinSingle cabin for vanDouble cabin for vanDouble cabin for vanUnitized body-11 seatsUnitized body-for 14 seats
Wheel Base(mm)30503050345030503450
Overall dimensions(mm)4865*1715*19954865*1715*19955265*1715*19954860*1715*19955265*1715*1995
Cargo Box Size(mm)2670*1550*1350(5.6m³)1675*1550*1350(3.5m³)3205*1550*1350(6.7m³)2+3+3+3 SEATS LINING2+3+3+3+3 SEATS LINING
Curb Weight (Kg)14651480156016201690
G.VW29652980306026202810
Max.Speed(Km/h)100100100100100
Tyre model185R14LT185R14LT185R14LT185R14LT185R14LT
QTY of wheels4+14+14+14+14+1
Brake systemHydraulic brakeHydraulic brakeHydraulic brakeHydraulic brakeHydraulic brake
Parking brakeCentral drum brakeCentral drum brakeCentral drum brakeCentral drum brakeCentral drum brake
Gearshift5+1 speed,manually5+1 speed,manually5+1 speed,manually5+1 speed,manually5+1 speed,manually
Battery volt12V12V12V12V12V
ENGINE POWER
Engine ModelDAM16KR(DAE)DAM16KR(DAE)DAM16KR(DAE)DAM16KR(DAE)DAM16KR(DAE)
Displacement(cc)15971597159715971597
Power(KW)/Rpm90/600090/600090/600090/600090/6000
Torque(N.m)/Rpm158/4800158/4800158/4800158/4800158/4800
CONFIGURATIONS
ABS●●●●●
Power steering●●●●●
MediaMP5MP5MP5MP5MP5
A/C●●●●●
Power window●●●●
Central lock●●●●●

FAQ

A: 1 unit.

A: We accept T/T, Alipay, Western Union, Money Gram and other flexible payment terms.

A: We can deal with FCA, FOB, CFR, DAP, CIF, DDP, etc.

A: It could be shipped by sea and rail. Please confirm with us before placing orders.

A: Firstly, Our products are produced in strict quality control system, we have
passed 100% testing before shipment (basic equipment testing also includes roads, climbing, raining, over-water roads, etc.).

Secondly, we can provide on-line service if you have any issues.
